XTREME NZ 15e

THE BEST 15′ OFFROAD HYBRID WITH A CLUB LOUNGE

We believe this is the best 15’ offroad hybrid with a club lounge in New Zealand. Featuring a massive 600Ah of LiFePRO+® Lithium Battery Power, 745 watts of solar recharging and an auto transfer inverter to run all your 240V appliances and charge at 120 amps for the fastest battery recovery times. Quality appliances throughout including internal cooking, refrigeration, microwave and an outside kitchen that shares a pantry accessible from both cooking stations makes this unique. Diesel heating and air conditioning as standard ensure all year-round comfort while the stylish finishes and build quality will have you loving this hybrid forever.

Towball Weight

Approx. 250kg

ATM Rating

3000kg

Tare Weight

Approx. 2540kg

= 3 Berth

= 600Ah Lithium Battery Power

= Electric Lift Roof

= 745W of Solar

= European Made Diesel Heater

= Club Lounge

SPECIFICATIONS

GENERAL

♦ 15’ Offroad Pop-Top Caravan

♦ 3 Berth

♦ 1 x king size innerspring mattress

♦ Convertible club lounge (King Single equivalent)

♦ Mattress size – 2000mm L x 1750mm W x 250mm H

♦ Galvanised chassis + aluminium composite panel throughout

♦ Combination of welded aluminium 50mm x 25mm RHS, 75mm x 25mm RHS and 40mm x 20mm RHS and 25mm x 25mm SHS aluminium alloy

WEIGHTS & RATINGS

♦ Tare weight Approx. 2540kg

♦ Towball weight Approx. 250kg

♦ ATM Rating 3000kg

♦ Payload Approx. 460Kg

DIMENSIONS – with Aircon

♦ Open – 7500mm L x 5340mm W x 3195mm H
♦ Closed (Travel Size) – 6920mm L x 2281mm W x 2675mm H
♦ Annex size – 5.4m x 2m
♦ Ensuite tent – 1.2m x 0.9m

CHASSIS

♦ 150mm x 50mm – Q460 galvanised steel RHS
♦ Cruisemaster™ DO35 hitch
♦ ARK XO750 Jockey Wheel
♦ 16 x 7.5 6/139.7 aluminium alloy wheels fitted with 265/75 R16 Goodride radial mud terrain & 2 x spare wheels
♦ X-TRACK independent coil spring suspension with 2 x TOUGH TRAX HD shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy duty lockable and adjustable drop down
♦ CASP 1500kg high-lift scissor jack & integrated jacking points

EXTERIOR

♦ 4.35m 12V electric cassette awning

♦ Full annex, enclosed roof, walls, floor and draft skirt

♦ 2 x 9kg gas cylinder holders with LCC27 pigtail connector

♦ 2 x 20L jerry can holders

♦ 1 x 120L + 1 x 80L freshwater & 1 x 80L grey water

♦ 12V electric marine diaphragm pump

♦ External Slide out stainless steel body with gas hob cooktop & washboard sink with plumbed hot & cold water supply

♦ Chequer plate stone guard & front storage Aerolocker® design with forward-facing mud flap protection

♦ Hot/cold external shower includes wall-mounted ensuite tent

♦ Inside/ outside rolling pantry (pass through storage hatch)

INTERIOR

♦ Internal Modern oak timber style laminated bench & counter tops with matte black round bowl sink & tapware

♦ Dometic CTS4110 cassette toilet + hot & cold plumbed shower with wash basin combination ensuite

♦ Tinted slimline double glazed acrylic windows and double cassette blind with flyscreen and block-out

♦ Ensuite 12V roof hatch with fan and LED lighting and skylight over the bed with 12V lighting and double cassette blind

MAJOR APPLIANCES

♦ Truma Aventa comfort 2400W roof-mounted air conditioning system with integrated heat pump

♦ 14L Truma UltraRapid (gas-operated)

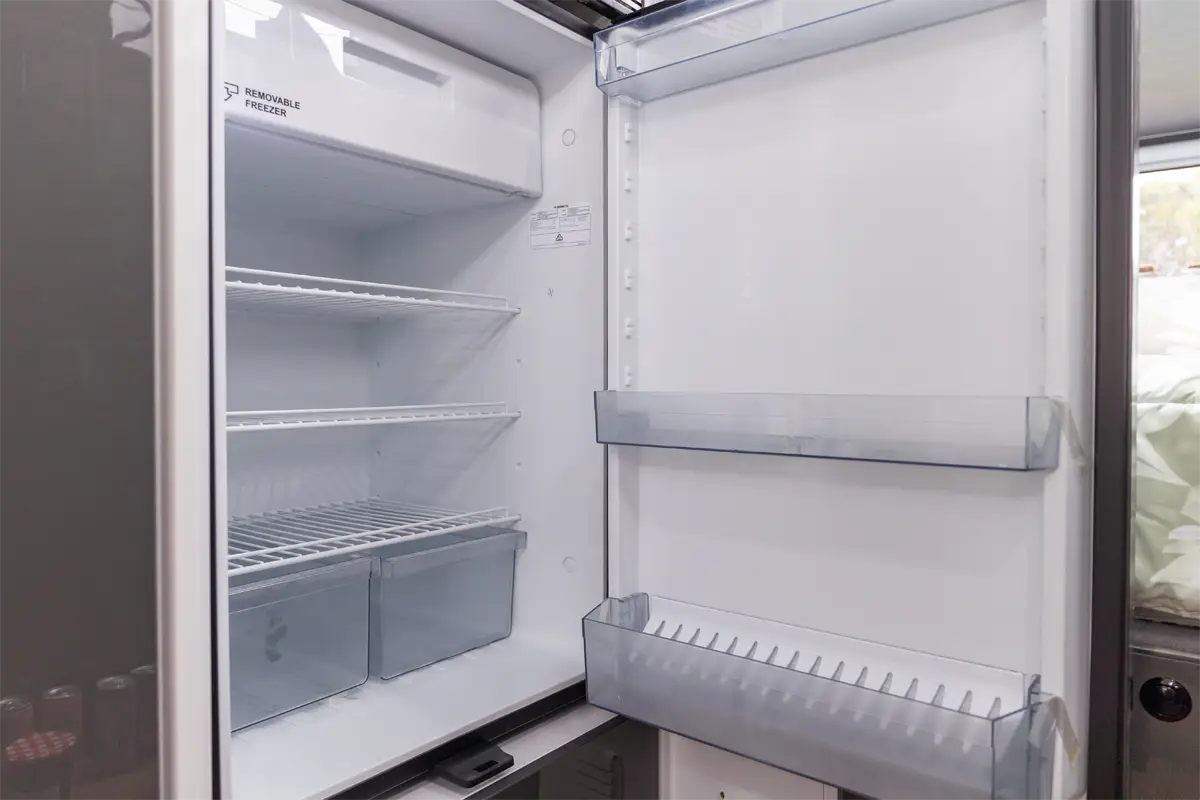

♦ 130L Dometic NRX1130 12V Compressor Refrigerator

♦ Internal Cooker – Stainless steel 3-burner gas hob cooktop with glass lid & supplied 240V A grade crystal plate portable induction cooktop

♦ External Cooker – Stainless steel 3-burner gas hob cooktop with glass lid

♦ European made AutoTerm Air2D 2kW diesel heater with LED display & 8L diesel tank.

♦ Built-in 20L 700W Microwave

SAFETY FEATURES

♦ Trail-Assure® BG-5000 – electronic stability control with asymmetric braking (offroad ready)

♦ 2.4GHz digital wireless rear view camera + 7″ portable monitor

♦ MDC LOK® – coupling lock8

ELECTRICAL

♦ 600Ah of LiFePRO+® 12V Lithium Iron Phosphate battery capacity

♦ 3 x 175W and 2 x 110W Solar Panels (745W Total) with SolarAir™ – Thermal Management solar panel mounting system

♦ Projecta INVCHR2 -120A 5-stage battery charger with 2000W auto transfer inverter

♦ 2x Projecta IDC25X – 25A 5-stage Intelli-Charge 9-32V lithium DC/ solar battery chargers

♦ Projecta BM500-BT – battery monitor with Bluetooth connectivity

♦ Projecta INVCHR2 – 12V 2000W pure sine wave inverter with automatic AC transfer

♦ Lighting Internal – 12V LED lighting throughout with wireless switching

♦ Lightning External – 12V LED lighting throughout, awning and offside white and yellow (Bug Light) wall lighting with blue light up entry door grab handle, position markers, indicator & stop/tail lights

♦ 12-pin flat

♦ Stereo head unit with internal & external speakers

♦ HD LED TV with 12V compatibility, USB and Internal & External full motion TV brackets

♦ Milenco Power 900L omnidirectional TV antenna

♦ 3 x Caframo Sirocco II 12V wall-mounted 3-speed fan

INTERNAL POWER OUTLETS

♦ 7 x 12V accessory sockets

♦ 6 x 5V dual USB charging ports (1A & 2A split)

♦ 1 x F-type TV outlet

♦ 4 x 240V double pole GPOs

♦ 2 x 10W wireless benchtop built-in phone chargers

EXTERNAL POWER OUTLETS

♦ 1 x Anderson plugs

♦ 2 x 12V accessory socket

♦ 1 x F-type TV outlet

♦ 1 x 240V double pole GPOs

Call to view anytime. Bevin Muir Gateway RV Centre Kopu, Thames 0274621142
