XTREME NZ15-4E

4-berth, 15-foot hybrid caravan, the XTREME NZ15-4E  offers supreme comfort and convenience. Powered by 600Ah of LiFePRO+® lithium battery power, 745W of solar, and a cutting-edge Projecta inverter charger, this unique system allows off-grid living with comfort and freedom. Own the best off-grid family caravan in New Zealand

♦ 745W of Rooftop Solar

♦ UPGRADED 600Ah of LiFePRO+® Lithium Battery Power

♦ UPGRADED Projecta INVCHR2 – 12V automatic 120A 5-stage lithium battery charger

♦ UPGRADED Projecta INVCHR2 – 12V 2000W pure sine wave inverter with automatic AC transfer

♦ UPGRADED 2 x Projecta IDC25X Intelli-Charge 25 Amp Dual Battery Charger

♦ NEW 2 x 10W wireless benchtop built-in phone chargers

♦ UPGRADED European made AutoTerm Air2D 2kW diesel heater with LED display & 8L diesel tank.

♦ UPGRADED Truma Offroad Aventa air conditioning can be run off internal batteries

♦ SolarAirTM – Thermal Management solar panel mounting system to maximise system efficiency and performance through convective heat transfer technology.

4 Berth

600Ah Lithium Battery Power

745W of Solar

Electric Lift Roof

European Made Diesel Heater

Internal Kitchen

♦ 745W of Rooftop Solar

♦ UPGRADED 600Ah of LiFePRO+® Lithium Battery Power

♦ UPGRADED Projecta INVCHR2 – 12V automatic 120A 5-stage lithium battery charger

♦ UPGRADED Projecta INVCHR2 – 12V 2000W pure sine wave inverter with automatic AC transfer

♦ UPGRADED 2 x Projecta IDC25X Intelli-Charge 25 Amp Dual Battery Charger

♦ NEW 2 x 10W wireless benchtop built-in phone chargers

♦ UPGRADED European made AutoTerm Air2D 2kW diesel heater with LED display & 8L diesel tank.

♦ UPGRADED Truma Offroad Aventa air conditioning can be run off internal batteries

♦ SolarAirTM – Thermal Management solar panel mounting system to maximise system efficiency and performance through convective heat transfer technology.

♦ Push Button Electric Roof: Effortless setup at the touch of a button

♦ ESSENTIAL Trail-Assure® BG-5000 asymmetric stability control

♦ ESSENTIAL Reversing Escape Eyes® camera, with integrated windscreen mounted monitor

♦ Thetford, Truma and Dometic Appliances

♦ NEW Supplied 240V A grade crystal plate portable induction cooktop

♦ UPGRADED ARK XO750 Jockey Wheel

♦ NEW Modern oak timber style laminated bench & counter tops with gloss grey cabinetry

♦ NEW Black sinks, tapware, cabinet hardware, switches & power outlets

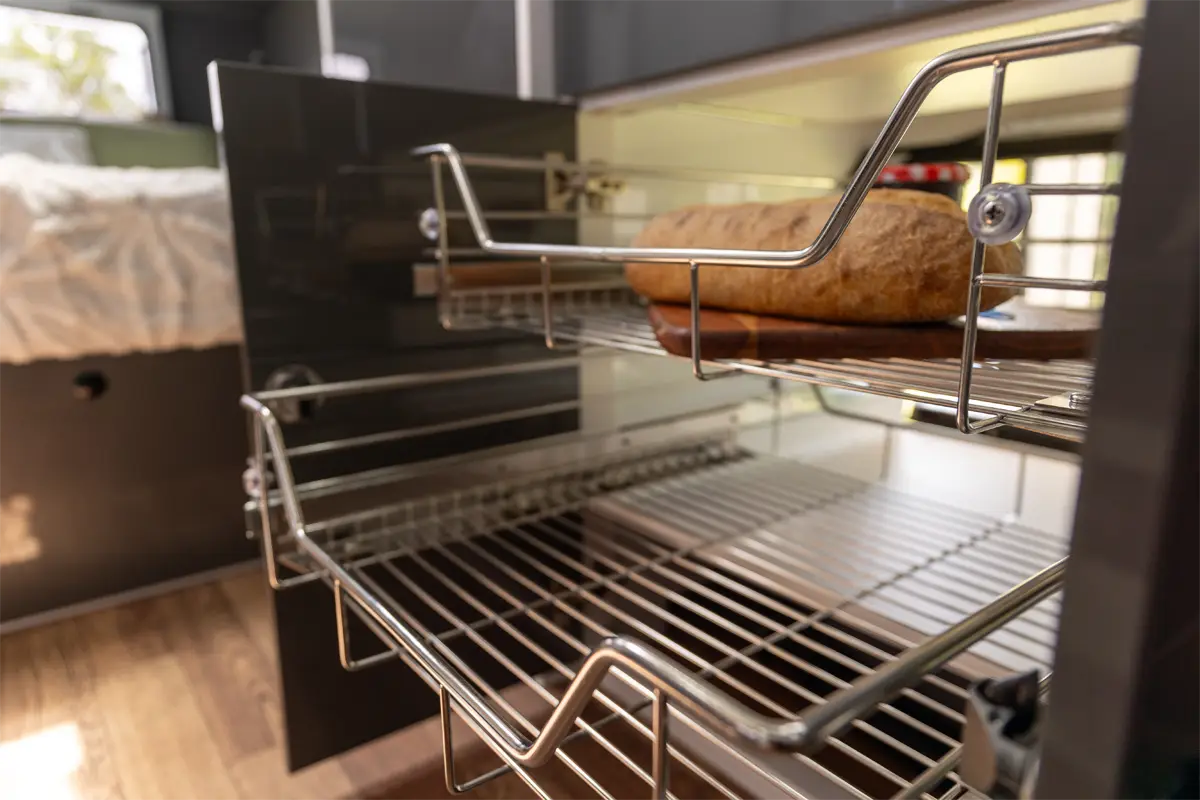

♦ ESSENTIAL Inside/ outside rolling pantry (pass through storage hatch)

♦ External TV Compartment with TV arm & power outlets

DIMENSIONS & WEIGHTS

Tow ball Weight Approx. 260kg

ATM Rating 3000kg

Tare Weight Approx. 2440kg

SPECIFICATIONS

GENERAL

♦ 15’ Offroad Pop-Top Caravan

♦ 4 Berth

♦ 1 x king size innerspring mattress

♦ 2 x single high-density foam bunks

♦ Bed – 2000mm L x 1750mm W x 250mm H

♦ Top bunk – 2050mm L x 700mm W x 80mm H

♦ Bottom bunk – 2050mm L x 1000mm (narrowest point) W x 80mm H

♦ Galvanised chassis + aluminium composite panel throughout

♦ Combination of welded aluminium 50mm x 25mm RHS, 75mm x 25mm RHS and 25mm x 25mm square aluminium alloy

WEIGHTS & RATINGS

♦ Tare weight Approx. 2440kg

♦ Towball weight Approx. 260kg

♦ ATM Rating 3000kg

♦ Payload Approx. 560Kg

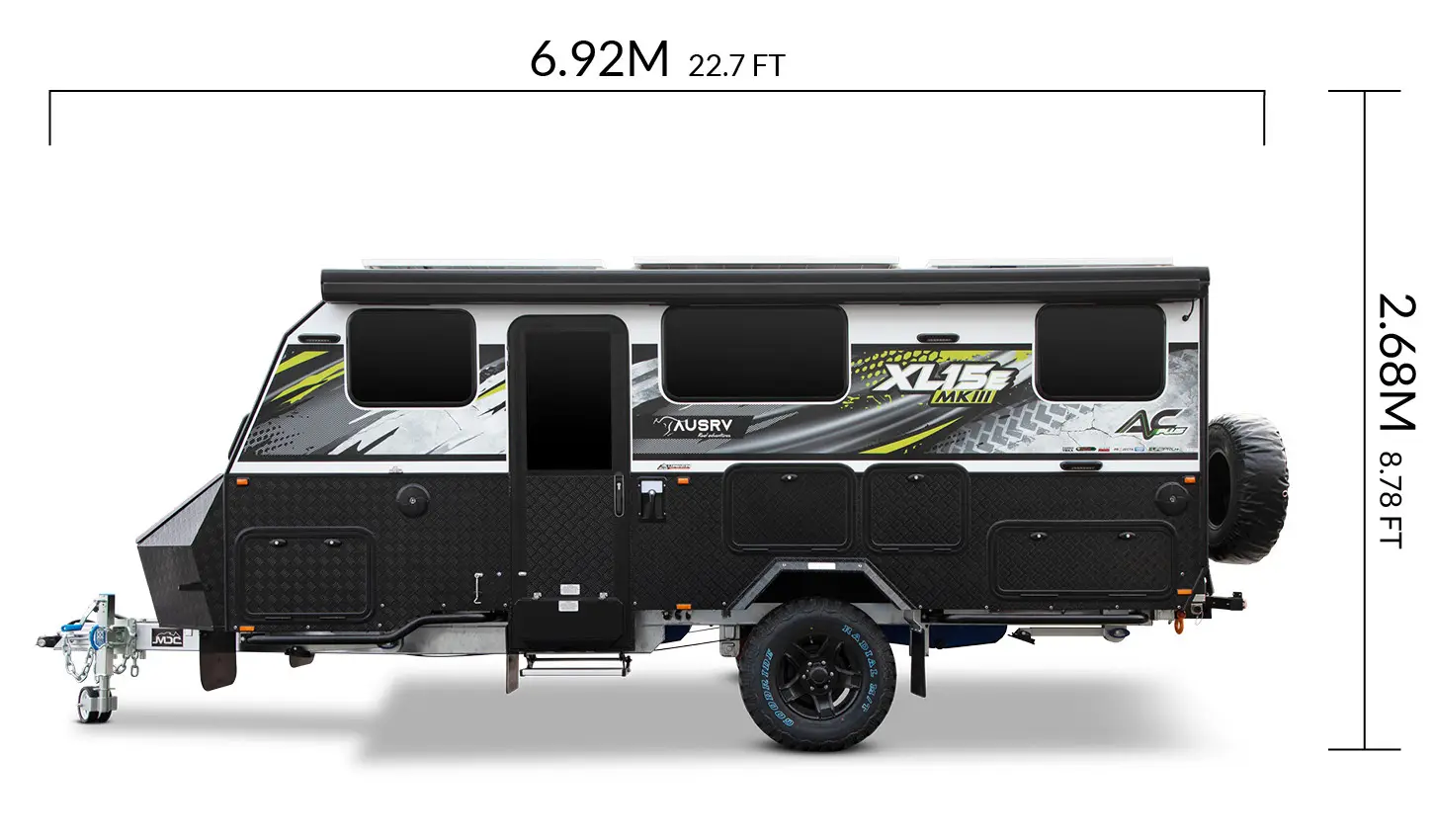

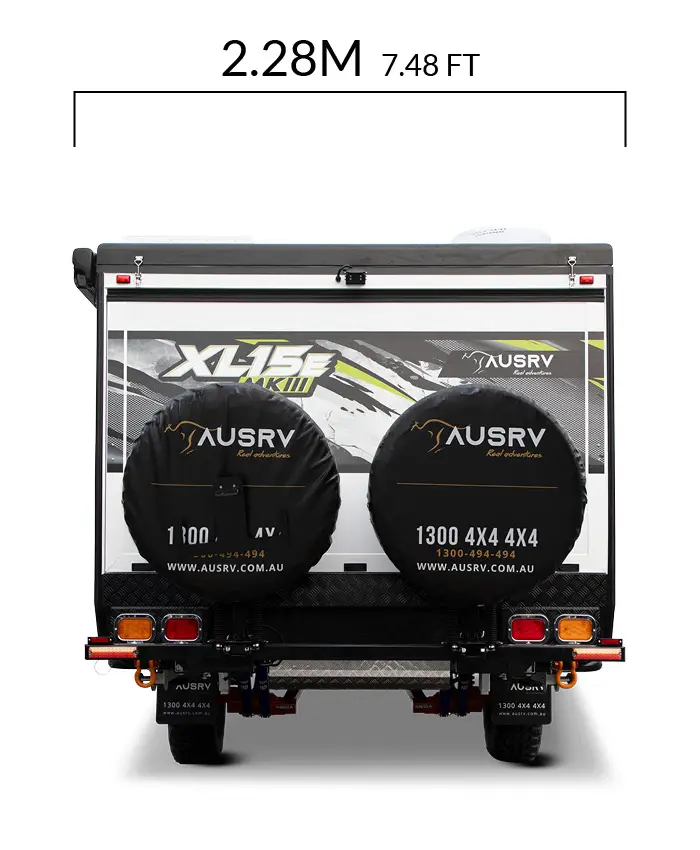

DIMENSIONS – with Aircon

♦ Open – 7310mm L x 5491mm W x 3085mm H

♦ Closed (Travel Size) – 6710mm L x 2281mm W x 2635mm H

♦ Annex size – 5.2m x 2m

♦ Ensuite tent – 1.2m x 0.8m

CHASSIS

♦ 150mm x 50mm – Q460 galvanised steel RHS

♦ Cruisemaster™ DO35 hitch

♦ ARK XO750 Jockey Wheel

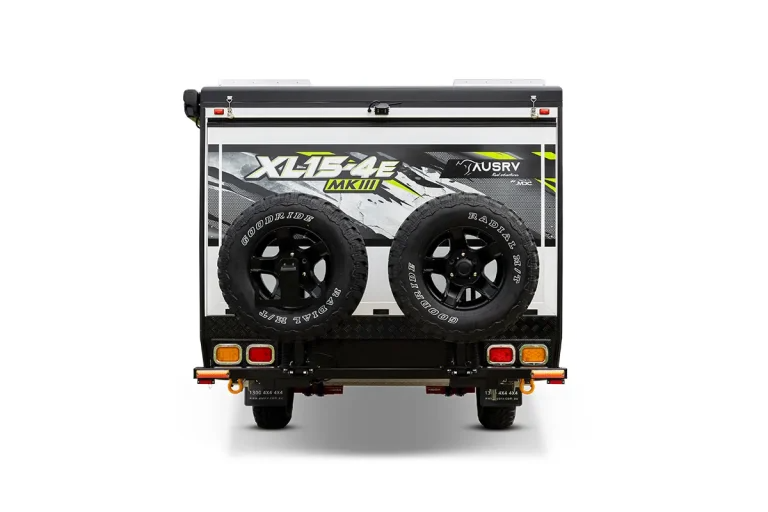

♦ 16 x 7.5 6/139.7 aluminium alloy wheels fitted with 265/75 R16 Goodride radial mud terrain & 2 x spare wheels

♦ X-TRACK independent coil spring suspension with 2 x TOUGH TRAX HD shock absorbers on each side

♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system

♦ 4 x heavy duty lockable and adjustable drop down

♦ CASP 1500kg high-lift scissor jack & integrated jacking points

EXTERIOR

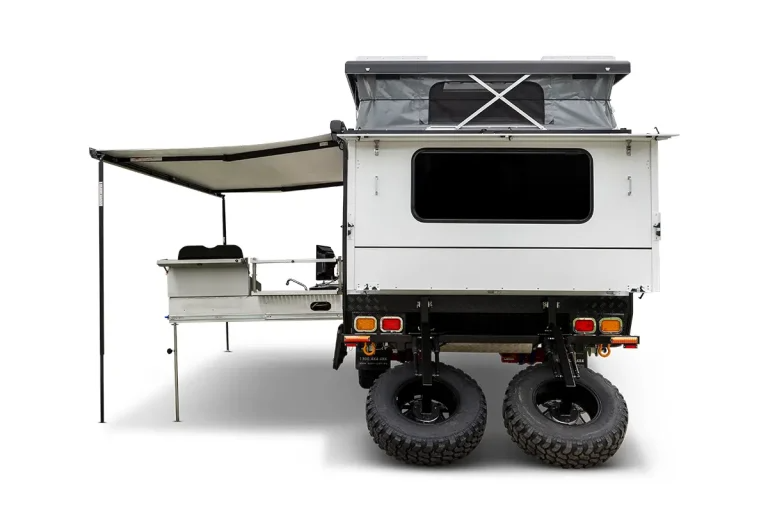

♦ 4.2m 12V electric cassette awning

♦ Full annex, enclosed roof, walls, floor and draft skirt

♦ 2 x 9kg gas cylinder holders with LCC27 pigtail connector

♦ 2 x 20L jerry can holders

♦ 2 x 120L fresh water & 1 x 80L grey water

♦ 12V electric marine diaphragm pump

♦ External Slide out stainless steel body with gas hob cooktop & washboard sink with plumbed hot & cold water supply

♦ Chequer plate stone guard & front storage Aerolocker® design with forward-facing mud flap protection

♦ Fridge Slide – 1000mm L x 550mm W x 490mm H (passenger side)

♦ Hot/cold external shower includes wall-mounted ensuite tent

♦ Inside/ outside rolling pantry (pass through storage hatch)

INTERIOR

♦ Internal Modern oak timber style laminated bench & counter tops with matte black round bowl sink & tapware

♦ Thetford C400 cassette toilet + hot & cold plumbed shower with wash basin combination ensuite

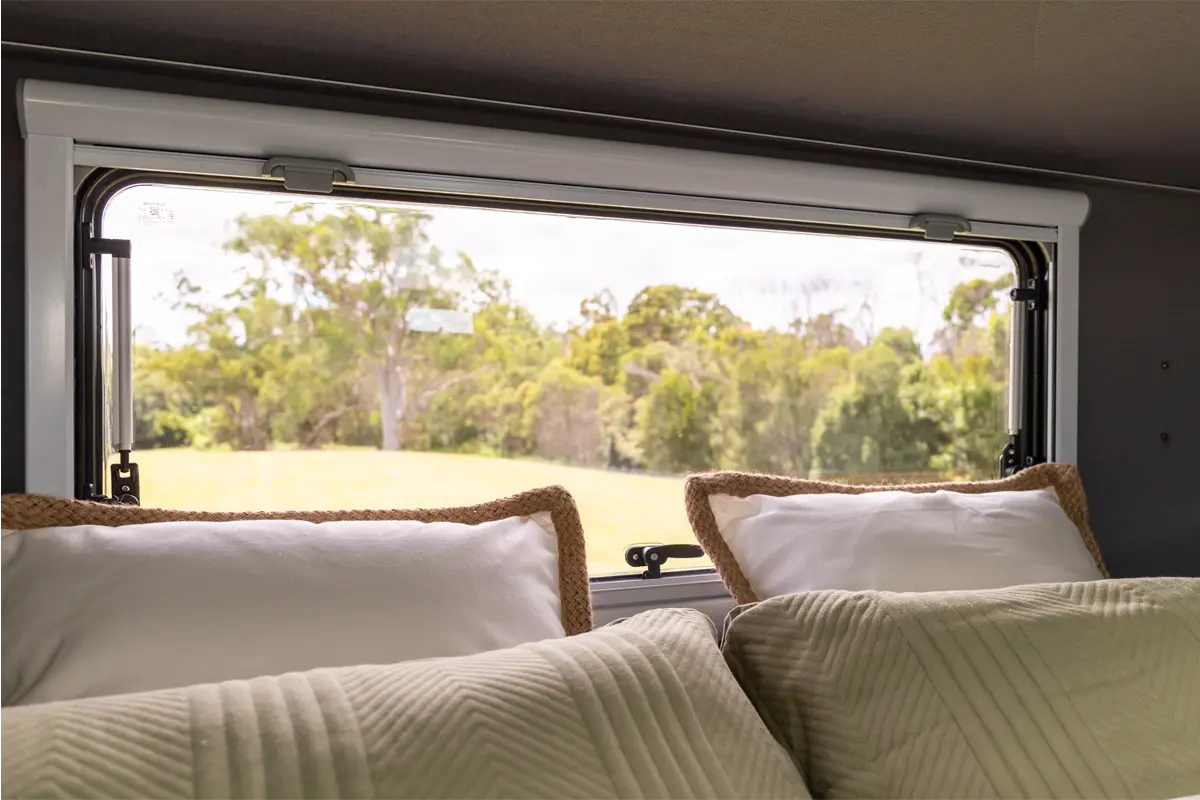

♦ Tinted slimline double glazed acrylic windows and double cassette blind with flyscreen and block-out

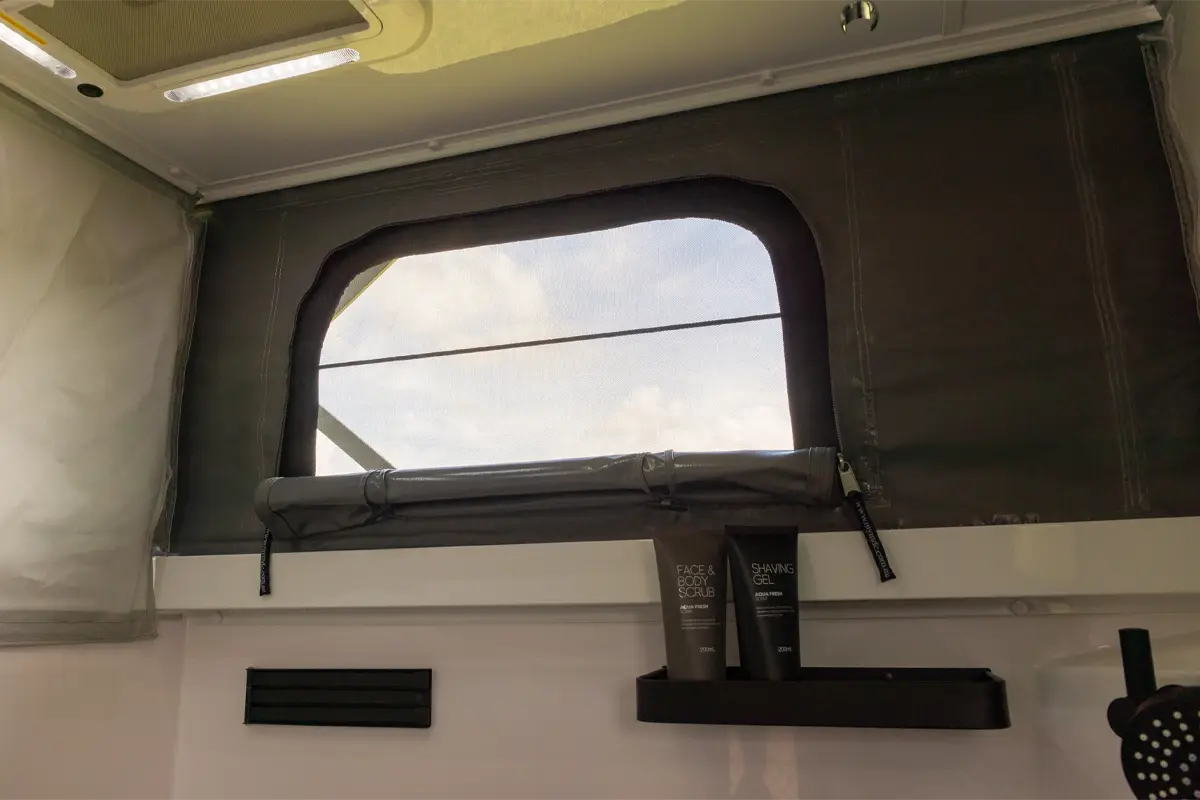

♦ Ensuite 12V roof hatch with fan and LED lighting and skylight over the bed with 12V lighting and double cassette blind

MAJOR APPLIANCES

♦ Truma Aventa comfort 2400W roof-mounted air conditioning system with integrated heat pump

♦ 14L Truma UltraRapid Hot Water System(gas-operated)

♦ Internal Cooker – Dometic 2-burner hob with Glass Lid & supplied 240V A grade crystal plate portable induction cooktop

♦ External Cooker – Stainless steel 3-burner gas hob cooktop with glass lid

♦ European made AutoTerm Air2D 2kW diesel heater with LED display & 8L diesel tank.

SAFETY FEATURES

♦ Trail-Assure® BG-5000 – electronic stability control with asymmetric braking (offroad ready)

♦ 2.4GHz digital wireless rear view camera + 7″ portable monitor

♦ MDC LOK® – coupling lock

ELECTRICAL

♦ 600Ah of LiFePRO+® 12V Lithium Iron Phosphate battery capacity

♦ 3 x 175W and 2 x 110W Solar Panels (745W Total) with SolarAir™ – Thermal Management solar panel mounting system

♦ Projecta INVCHR2 -120A 5-stage battery charger with 2000W auto transfer inverter

♦ 2x Projecta IDC25X – 25A 5-stage Intelli-Charge 9-32V lithium DC/ solar battery chargers

♦ Projecta BM500-BT – battery monitor with Bluetooth connectivity

♦ Projecta INVCHR2 – 12V 2000W pure sine wave inverter with automatic AC transfer

♦ Lighting Internal – 12V LED lighting throughout with wireless switching

♦ Lightning External – 12V LED lighting throughout, awning and offside white and yellow (Bug Light) wall lighting with blue light up entry door grab handle, position markers, indicator & stop/tail lights

♦ 12-pin flat

♦ Stereo head unit with internal & external speakers

♦ HD LED TV with 12V compatibility, USB and Internal & External full motion TV brackets

♦ Milenco Power 900L omnidirectional TV antenna

♦ 2 x Caframo Sirocco II 12V wall-mounted 3-speed fan

INTERNAL POWER OUTLETS

♦ 6 x 12V accessory sockets

♦ 5 x 5V dual USB charging ports (1A & 2A split)

♦ 1 x F-type TV outlet

♦ 4 x 240V double pole GPOs

♦ 2 x 10W wireless benchtop built-in phone chargers

EXTERNAL POWER OUTLETS

♦ 1 x Anderson plugs

♦ 1 x 12V accessory socket

♦ 1 x F-type TV outlet

♦ 1 x 240V double pole GPOs
